RFIDiagnostixPC Software

  RFIDiagnostixPC performs parameter sweeps of RFID tags using a PC and one serially connected reader.
See details of Readers and Tests below.  You can use RFIDiagnostixPC to:
  • Document the health of inlays, finished labels and applied labels
  • Document good and bad locations for RFID tags on specific loads
  • Determine optimum RFID settings for press, rewind, conveyor and portals
  • Validate reader, antenna, cables and orientation against known good RFID tags and loads

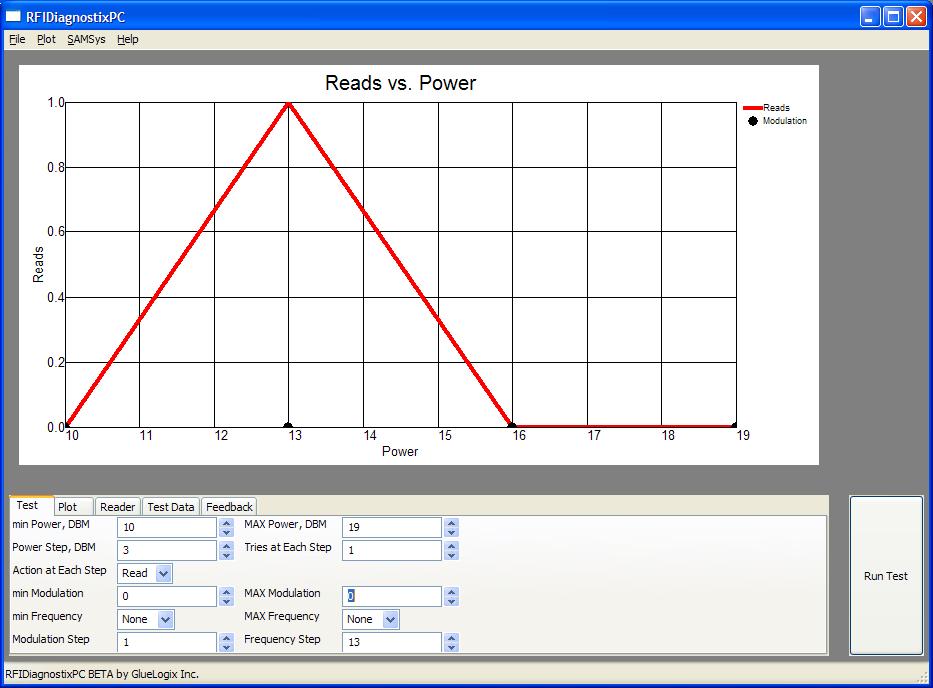

This screen shot is from the Beta version of RFIDiagnostixPC:

RFIDIagnostixPC Screen Shot


Features

  • Save test data to CSV file
  • Recall and replot test data
  • Change plot axes dynamically to explore your test data
  • Save test specification between runs
  • Horizontal/vertical plot grid can be hidden
  • GUI settings for power, modulation and frequency as appropriate for the selected reader
  • Test Data is displayed in a grid (like a spreadsheet)
  • Feedback tab presents details of events, can be saved and cleared
  • Search serial ports for connected readers
  • Read/Write debug tab lets you reality check test setup and quickly screen tags
  • ThingMagic m4e features:
    • Sweep power and frequency
    • Set antenna and timeout
  • WJ features:
    • Sweep power
    • Set antenna
  • SAMSys features:
    • Sweep power, frequency and modulation
    • Send debug command to reader - reply is displayed in the Feedback tab
    • Set FCC/ETSI/CEPT frequency range if reader is "unlocked" for that kind of testing

Specifications

Platform
This software should run on any Windows NT, 2K or XP PC.
Tested Platforms
WinXP with native serial port and Digi EdgePort USB-Serial
Operating Systems
Windows (Linux on request)
Readers and Tests
See below.

Readers and Tests

Reader (UHF)
Test
Sweep Parameters
SAMSys
Read, Write
Power, Modulation Depth, Frequency
ThingMagic
Read, Write Power, Frequency
WJ
Read, Write Power

Other reader types and frequency ranges available on request.

Status 22Sep2007

  • Reading and writing tags, with power/modulation/frequency sweep, SAMSys MP931x/9320, WinXP.
  • Reading and writing tags, with power/frequency sweep, ThingMagic M4e, WinXP.
  • Reading and writing tags, with power sweep, WJ MPRx000, WinXP.
  • RFIDiagnostix for handhelds is under development: RFIDiagnostix Handheld Page
  • Price: $500 per license (reseller discounts available)
  • Email Inquiry: Inquire by email
PRO version
A number of advanced features are being considered for an eventual RFIDiagnostixPRO package:
  • Overlay plots of  multiple data sets
  • Connection to multiple readers of multiple types
  • Save multiple test parameters in text format .job files
  • Gather test data from RFIDiagnostix Handheld units
  • Integration with printers and label transport mechanisms
  • Integration with antenna analyzers
  • Integration with USB camera to record test setup
  • Save test, results, plot, photo and supporting data as HTML and/or XML and/or PDF
  • User-programmable buttons
You can express interest in RFIDiagnostixPRO by email here.



If you already sell a vertical system, GlueLogix can help you integrate RFIDiagnostix or add parameter sweeps to your existing software.
